DJI AGRAS T100 Agricultural Drone for Precision Spraying, Spreading & Heavy-Lift Operations
100 kg lifting capacity · 100 L spraying system · 150 L spreading system · up to 400 kg/min discharge
A heavy-duty agricultural drone platform designed for precision agriculture, crop protection, fertilizer and seed application, orchard operations, and selected aerial lifting tasks. Product specifications should always be confirmed for the destination market and configuration.
DJI AGRAS T100: Multi-Role Agricultural Drone for Commercial Operations
The DJI AGRAS T100 is a multi-role agricultural UAV platform built around three major workflows: precision spraying, granular spreading and aerial lifting. DJI’s current specifications list a 100 L spraying system, a 150 L spreading tank with up to 400 kg/min discharge, and a lifting system with a maximum load capacity of 100 kg.
For commercial agriculture, the platform can support applications involving crop protection, fertilizer application, seed spreading, orchard management, field operations and difficult-to-access terrain. Its RTK positioning, LiDAR, millimeter-wave radar and vision systems are designed to support precise navigation and obstacle perception.
Three Core Agricultural & Industrial Applications

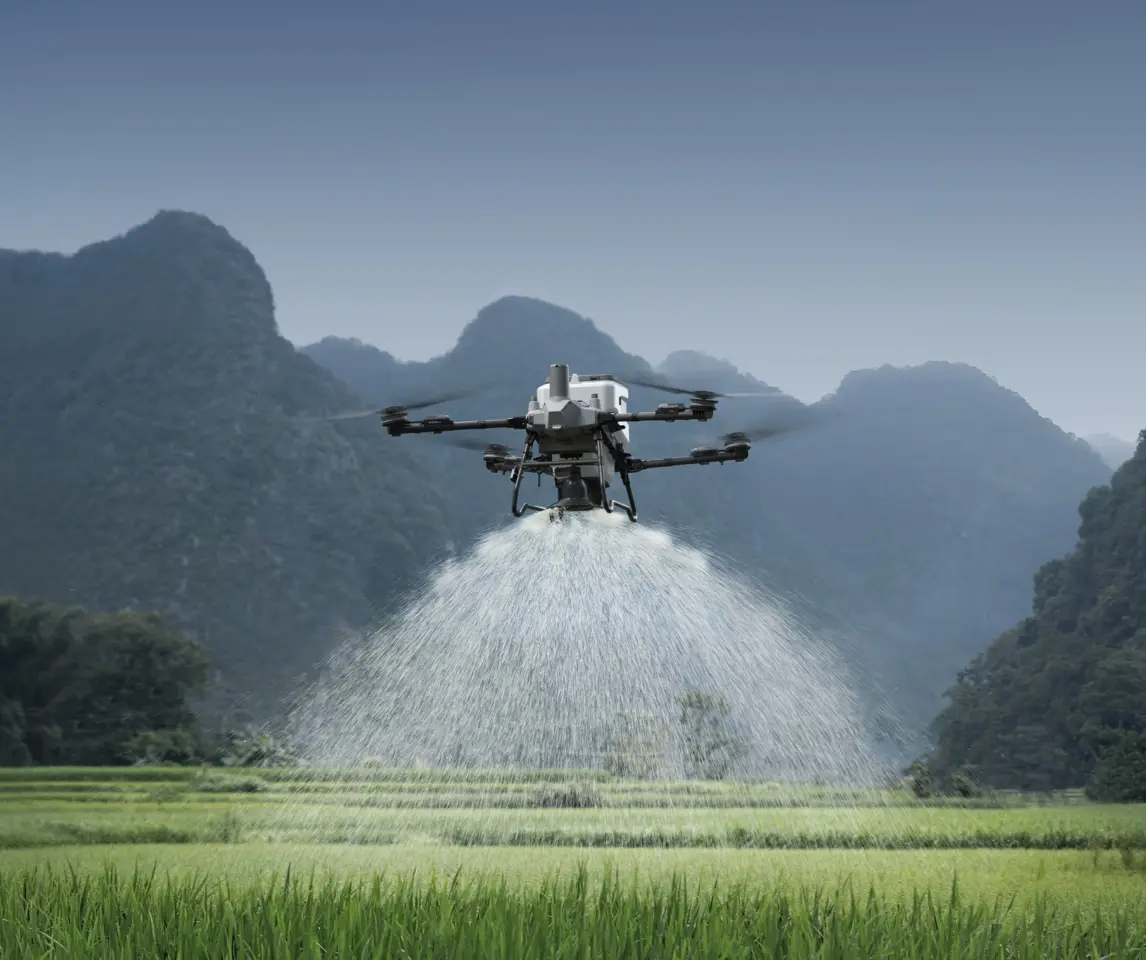

100 L Agricultural Spraying System
The T100 spraying configuration uses a 100 L HDPE tank and two magnetic-drive impeller pumps. DJI lists a maximum flow rate of 30 L/min with two nozzles and 40 L/min with four nozzles.
- 50–500 μm droplet size range
- 5–13 m effective spray width, depending on operating conditions
- Suitable for crop protection and agricultural liquid application
- Optional mist nozzle configuration for specialized applications
150 L High-Capacity Spreading System
The spreading system combines a 150 L tank, screw-feeder delivery and centrifugal disc spreading. DJI specifies up to 400 kg/min discharge for compound fertilizer and a 3–10 m effective spreading width under stated test conditions.
- 0.5–10 mm material compatibility with standard feeders
- Fertilizer, wheat, rice, feed and selected granular materials
- High-throughput fertilizer and seed spreading
- Multiple feeder configurations for different particle sizes

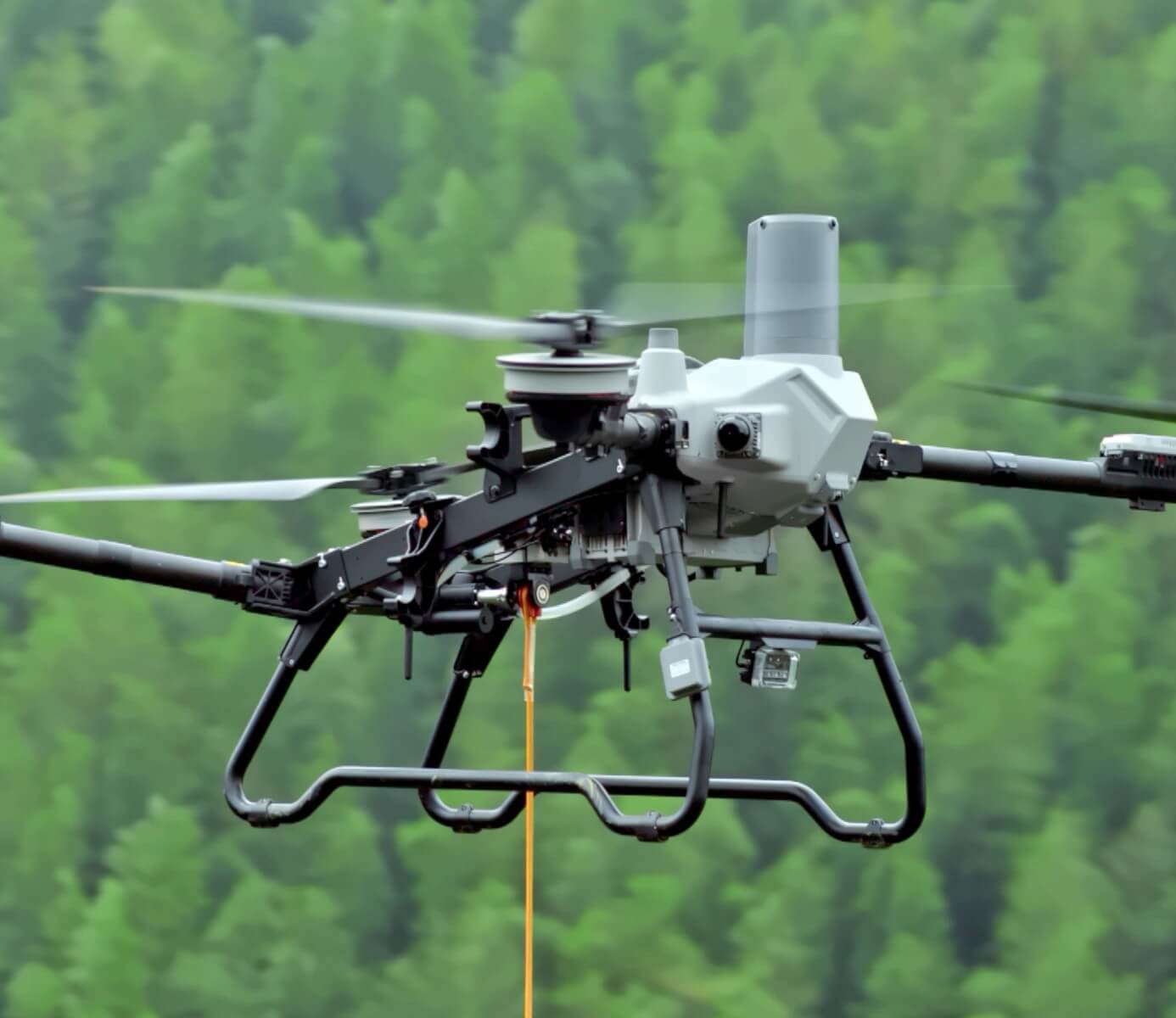

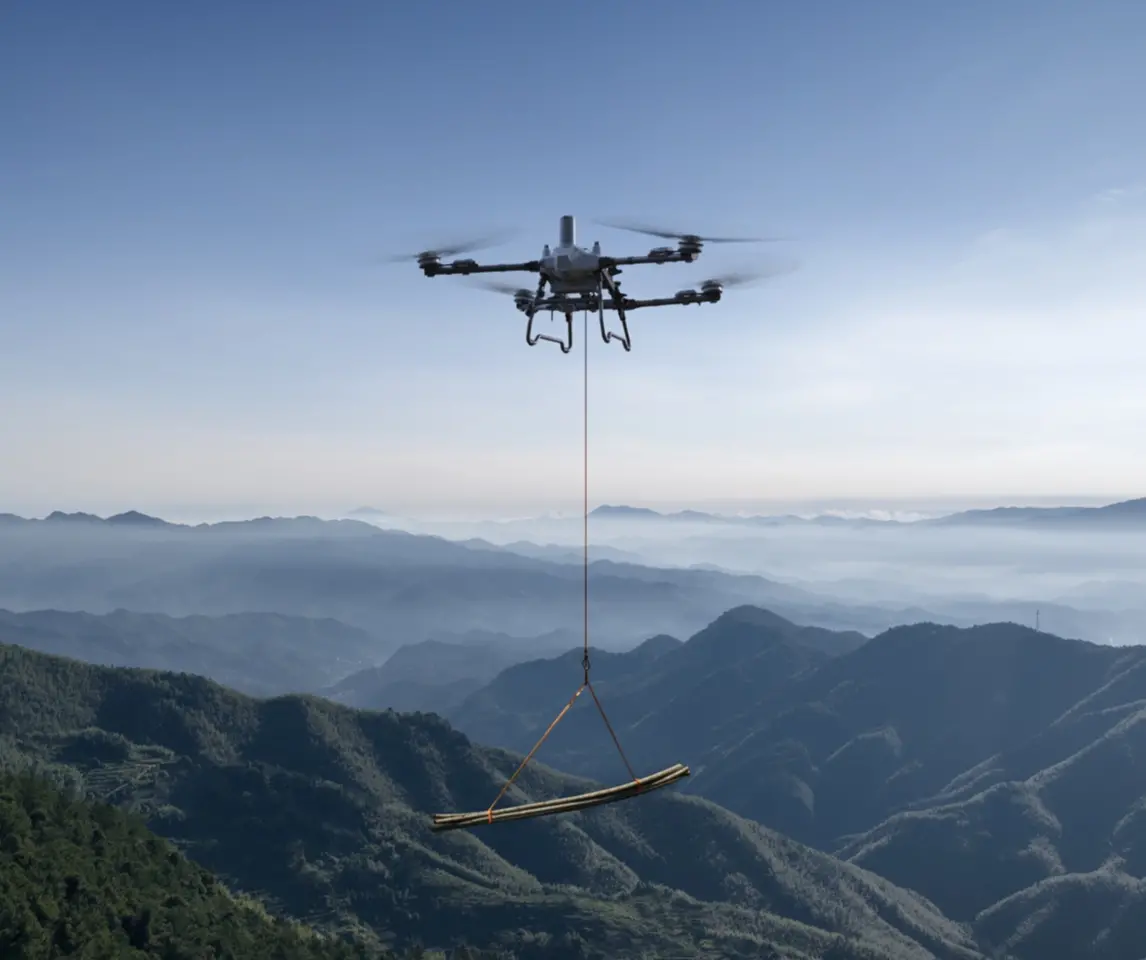

100 kg Aerial Lifting System
The lifting configuration is designed for selected cargo transport and aerial lifting scenarios where local regulations and operating conditions permit. The standard lifting cable is 10 m, with DJI recommending a 10–15 m cable range.
- Up to 100 kg lifting capacity
- 10 m standard lifting cable
- 10–15 m recommended cable range
- Suitable for selected agricultural and difficult-terrain logistics tasks
Precision Agriculture Technology & Safety Sensing
RTK High-Precision Positioning
With a strong GNSS signal and RTK enabled, DJI lists hovering accuracy of ±10 cm horizontally and vertically. D-RTK 3 AG supports network RTK calibration for centimeter-level positioning under specified conditions.

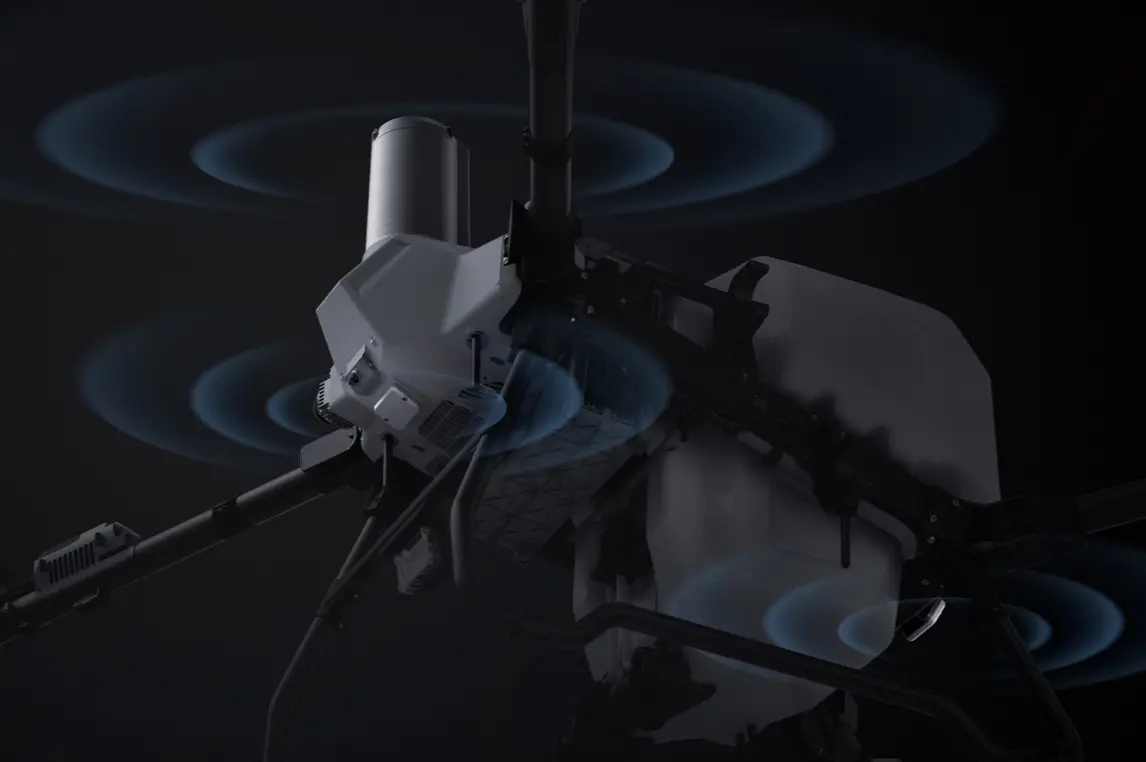

LiDAR + Vision + Radar
The T100 combines LiDAR, a Penta-Vision system and millimeter-wave radar for obstacle perception, terrain awareness and operational assistance in agricultural environments.
Smart Farming Workflow
DJI SmartFarm supports task planning and operational management for spraying and spreading workflows, helping integrate agricultural UAV operations into a more structured digital farming process.
Key Technical Specifications
| Parameter | DJI AGRAS T100 Specification |
|---|---|
| Aircraft weight | 75 kg spraying configuration; 77 kg with optional 4-nozzle configuration; 75 kg spreading configuration; 65 kg lifting configuration; 90 kg with dual-battery lifting configuration. |
| Maximum takeoff weight | 175 kg spraying; 177 kg optional 4-nozzle spraying; 175 kg spreading; 165 kg lifting; 170 kg dual-battery lifting. |
| Spraying tank | 100 L HDPE tank; 30 L/min standard 2-nozzle flow; 40 L/min optional 4-nozzle flow. |
| Spray droplet size | 50–500 μm. |
| Effective spray width | 5–13 m, depending on operating conditions. |
| Spreading tank | 150 L; centrifugal disc + screw feeder. |
| Maximum spreading discharge | 400 kg/min for compound fertilizer under DJI’s stated conditions. |
| Effective spreading width | 3–10 m under specified test conditions. |
| Lifting capacity | 100 kg maximum for the standard lifting system; 80 kg for the dual-battery lifting system. |
| Lifting cable | 10 m standard; 10–15 m recommended range. |
| RTK hovering accuracy | ±10 cm horizontal / ±10 cm vertical with strong GNSS signal and RTK enabled. |
| Obstacle measurement range | Up to 60 m, according to DJI’s stated safety-system specification. |
| Maximum configurable flight radius | 2 km. |
| Operating temperature | 0°C to 40°C. |
| Fast charging | DJI specifies approximately 8–9 minutes from 30% to 95% for the compatible intelligent battery using the D14000iE generator or C12000 smart charger. |
Specifications are based on DJI’s current published T100 documentation and may vary by region, configuration, firmware, operating conditions and applicable regulations. Confirm the exact configuration before purchase or deployment.
Where Agricultural Drones Add Operational Value
Fertilizer spreading, seed distribution, crop protection and field treatment.
Low-altitude agricultural spraying and targeted applications around tree canopies and field boundaries.
UAV operations in terrain where conventional ground equipment may have limited access.
Selected spraying, spreading and lifting tasks in steep, muddy or hard-to-reach areas.
RTK navigation, digital task planning and variable operational workflows for data-driven farm management.
Suitable for professional operators, custom application services, farm contractors and agricultural technology integrators.
Industry Resources & Authoritative References
These external resources provide regulatory, technical and research context for agricultural UAVs, precision agriculture and aerial application. They are provided for reference and do not constitute product endorsement.
DJI — AGRAS T100 Technical Specifications
DJI — AGRAS T100 FAQ & Safety Information
DJI — Manuals, 다운로드 & Software
FAA — Dispensing Chemicals & Agricultural Products with UAS
FAA — Part 137 Agricultural Aircraft Operations
USDA National Agricultural Library — UAS in Agriculture
USDA NIFA — Precision Agriculture & UAV Innovation
U.S. EPA — Best Practices for Aerial Application
Important Regulatory Note for U.S. Agricultural Drone Operations
Commercial agricultural drone operations in the United States can involve requirements under FAA rules, including 14 CFR Part 137 when aircraft are used to dispense agricultural products or other regulated substances. Operators should verify aircraft registration, pilot certification, exemptions/authorizations, Part 137 requirements and applicable federal, state and local pesticide rules before operation.
For pesticide applications, always follow the applicable product label and local regulatory requirements. Equipment specifications do not by themselves authorize a particular chemical application or flight operation.
Frequently Asked Questions
What is the maximum lifting capacity of the DJI AGRAS T100?
DJI lists a maximum lifting capacity of 100 kg for the standard lifting system. The dual-battery lifting system is specified at 80 kg.
How large is the T100 spraying tank?
The standard spraying system has a 100 L tank. DJI lists a maximum flow rate of 30 L/min with two nozzles and 40 L/min with four nozzles.
How much fertilizer can the T100 spread?
The spreading system has a 150 L tank and a maximum discharge rate of 400 kg/min for compound fertilizer under DJI’s stated test conditions. Actual application rate depends on material characteristics, feeder selection and operating parameters.
Is the T100 suitable for orchard spraying?
The platform supports agricultural spraying applications and DJI provides specialized operating functions and optional mist-nozzle configurations. Actual suitability depends on crop type, canopy structure, chemical label, local regulations and operating conditions.
Can the T100 be used for heavy-lift logistics?
The lifting system is designed for selected aerial lifting applications. Operators must comply with local aviation rules, load limits, safety procedures and DJI’s operating guidance.
Contact GreenIM for Product & Dealer Information
Looking for an agricultural drone for precision spraying, fertilizer spreading, seed application or heavy-lift operations? Contact our team for product information, configuration support and international business inquiries.
Website: greenimtech.com
Email: jackl@greenimtech.com
When contacting us, please indicate your country, application scenario, required payload, spraying/spreading requirements and intended operating environment.
