Zenmuse H30T: Next-Level Versatility and Performance

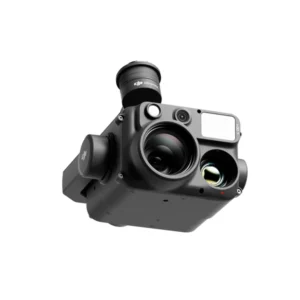

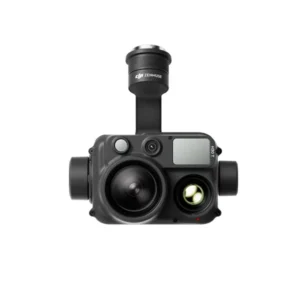

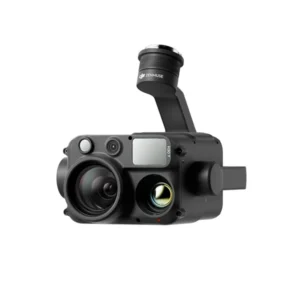

DJI Zenmuse H30T Five-Module Camera (Wide, Zoom, Rangefinder, Thermal, NIR Aux. Light)

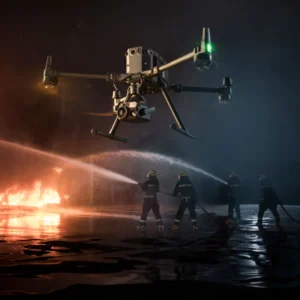

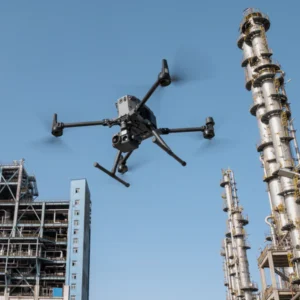

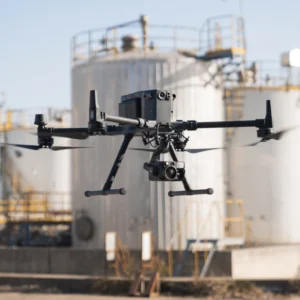

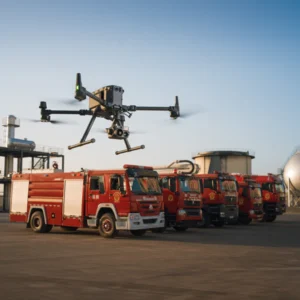

The Zenmuse H30T builds upon the capabilities of the H30 by integrating a state-of-the-art thermal imaging sensor, making it an exceptionally versatile and powerful aerial camera system. Designed to meet the demanding requirements of firefighting, search and rescue, and critical infrastructure inspections, the H30T excels in delivering precision and reliability during high-stress operations.
Equipped with an Ultra HD thermal camera offering a resolution of 1280×1024, the H30T delivers thermal imagery with four times the detail of previous models. This significant upgrade ensures sharper, more detailed thermal data, which is vital for accurately locating individuals and assessing thermal anomalies in complex and dynamic scenarios. The camera’s impressive temperature range of -20°C to 1600°C can be further enhanced with an optional IR Density Filter lens, allowing for rapid identification of critical temperature variations in emergency and hazardous environments.
The H30T also shines in low-light and nighttime operations. Its advanced night vision system supports both full-color and black-and-white modes, while a near-infrared auxiliary light enhances visibility in complete darkness. These features make it easier to detect crucial details when it matters most. The H30T integrates seamlessly with the DJI Matrice 350 RTK and Matrice 300 RTK platforms, and it is fully compatible with the DJI RC Plus controller. This ensures smooth and efficient workflows for professionals relying on cutting-edge drone technology to execute critical missions.
Deepthink S3: A Powerful Alternative
For those seeking an alternative to the H30T, the Deepthink S3 offers exceptional capabilities, including full-color night vision, 30X optical zoom, a laser rangefinder, and thermal imaging with temperature detection. Its durable design and high precision make it an excellent choice for challenging environments. Visit our comparison page for an in-depth analysis of how the Deepthink S3 stacks up against the Zenmuse H30T.
Explore these cutting-edge solutions at DSLRPros and equip your operations with the best in aerial imaging technology
Specifications
General
- Weight: 920±5 g
- Ingress Protection Rating: IP54
- Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK
- Video Pre-Recording: Supported
- Angular Vibration Range: Hover: ±0.002°, Flight: ±0.004°
- Controllable Range: Tilt: -120° to +60°, Pan: ±320°
Infrared Thermal Camera
- Thermal Imager: Uncooled VOx Microbolometer
- Video Resolution: 1280×1024@30fps
- Photo Resolution: 1280×1024
- Photo Format: R-JPEG
- Max Digital Zoom: 32×
- Temperature Measurement Method: Spot Measurement, Area Measurement, Center Point Temperature Measurement
- Temperature Measurement Range: High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter), Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
- Noise Equivalent Temperature Difference (NETD): ≤50 mK @ f/1.0
- Lens: DFOV: 45.2°, Focal Length: 24 mm (Equivalent focal length: 52 mm), Aperture: f/0.95, Focus: 13 m to ∞
- High-Res Mode: Supported
- UHR Infrared Image: Supported
Zoom Camera
- Sensor: 1/1.8-inch CMOS, Effective Pixels: 40 MP
- Lens: DFOV: 66.7° to 2.9°, Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm), Aperture: f/1.6-f/5.2, Focus: 5 m to ∞
- Metering Mode: Spot Metering, Average Metering
- Shutter Speed: 2-1/8000 s
- ISO Range: Single Shot: 100-25600, Night Scene: 100-819200
- Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
- Video Format: MP4
- Video Subtitles: Supported (embedded subtitles)
- Max Photo Size: 7328×5496, 3664×2748
- Photo Format: JPEG
- Video Codec and Bit Rate Strategy: H.264, H.265, CBR, VBR
- Hybrid Optical Zoom: 34×
- Max Zoom: 400×
Wide-Angle Camera
- Sensor: 1/1.3-inch CMOS, Effective Pixels: 48 MP
- Lens: DFOV: 82.1°, Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm), Aperture: f/1.7, Focus: 1 m to ∞
- Shutter Speed: 2-1/8000 s
- ISO Range: Single Shot: 100-25600, Night Scene: 100-409600
- Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
- Video Format: MP4
- Video Subtitles: Supported (embedded subtitles)
- Max Photo Size: 8064×6048, 4032×3024
- Photo Format: JPEG
- Video Codec and Bit Rate Strategy: H.264, H.265, CBR, VBR
Laser Range Finder
- Wavelength: 905 nm
- Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%), ≥ 500 m: ±1.0 m
- Measurement Range: 3-3000 m, Range for Common Objects: grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m
- Laser Spot Size: @100 m: approx. 50×450 mm, @1000 m: approx. 450×4500 mm
- Safety Regulation Level: Class 1
NIR Auxiliary Light
- Wavelength: 850 nm
- FOV: 4.6±0.6° (Round)
- Illumination Range: @100 m: Approx. 8m diameter circle

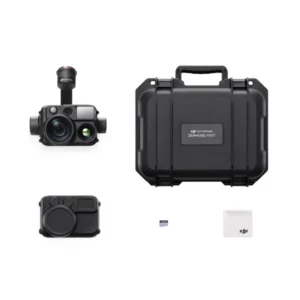

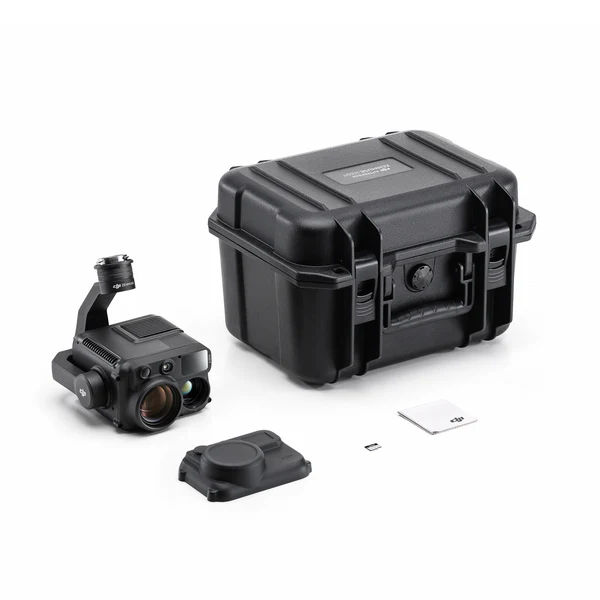

In the Box
In the Box- 1x Zenmuse H30T Gimbal Camera
- 1x Storage Case
- 1x Cleaning Cloth
